| 16× GbE Port |
| Web Management, SNMP |
| VLAN (802.1Q/MTU/Voice/Port-Based) |
| Port Mirror, Static Aggregation, etc |
| Managed/VLAN/Extend Preset Modes |
Inside Dhaka - 50 tk
Outside Dhaka - 100 tk
Cash on Delivery Available
| Model | GS1016E |
| Interfaces | Gigabit RJ45 Ports: 16 Extend Mode Ports#1: ~#14 VLAN Mode Ports: #1~#14 LED: Power Speed/Link/ACT of Each Ethernet Port Power Input: AC Inlet Physical Buttons: Managed/VLAN/Extend DIP Switch |
| Power | Basic Power Saving: True Power Methods: AC AC: 90~260V 50/60Hz Max Power Consumption: 7.8W Idle Power Consumption: 4.5W |
| Mechanical | Dimension: 200×118×44 mm 7.87×4.65×1.73 inches Product Weight: 625.5 g (22.06 oz.) Casing Material: Metal Installation: Desktop Rackmount via Brackets |
| Package Content | GS1016E Power Cord Installation Guide Mounting Kit |

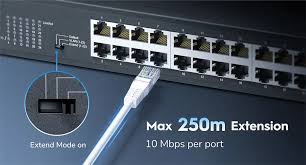

| Performance | Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports. MAC Address Table: 8192 Max Switching Capacity: 32 Gbps Jumbo Frame: 15 KB Packet Buffer: 4 Mbit |
| Reliability | Grounding Methods: Three-Prong Plug Grounding Point ESD: Contact: 6KV Air: 8KV Lightning/Surge Protection: RJ45: 4KV AC: CM 4KV/DM 2KV Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Switching | 802.3 Protocols: 802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3az Power Saving 802.1 Protocols: 802.1d: STP 802.1w: RSTP 802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED Port Management: Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az) Port Trunk Groups: 4 Max Port per Port Trunk Groups: 8 L2 Features: IGMP Snooping Loop Prevention DHCP Snooping STP/RSTP LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN Voice VLAN DSCP QoS 802.1p QoS Port-Based QoS |
| System | Control Methods: Config Web Page SNMP V1/V2 Firmware Upgrade: Local Upgrade Reliability: Backup and Restore Diagnostic Tools: Cable Status/Length Diagnosis Ping Languages: English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese |
| Warranty | 2-Year Brand Warranty |
